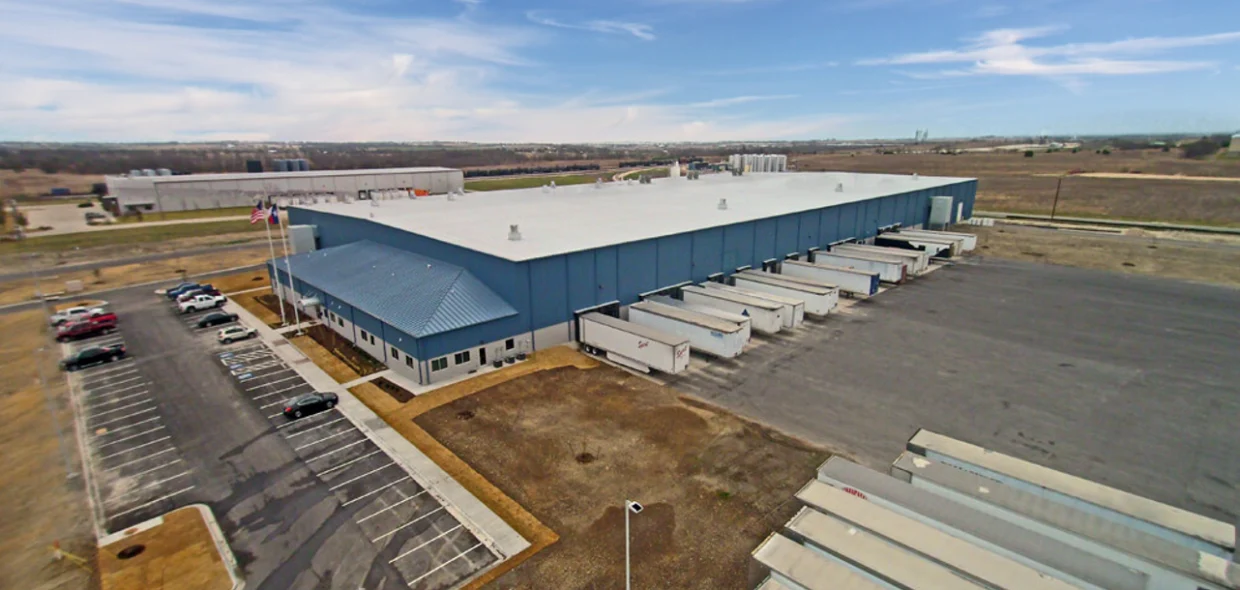

StarCorr Sheets

Project Details

Greenheck axial upblast exhaust fans are a cost-effective option for low to medium pressure applications. Roof-mounted models are designed to discharge clean air or fume exhaust up and away from the building. Typical uses are industrial space, warehouses, fume exhaust, and paint booth exhaust. Models are available in spark resistance construction, emergency smoke or continuous high-temperature exhaust. Select from direct and belt drive fans with cast aluminum or fabricated steel blades based upon application requirements.

The motor mounted on model TAUB-L/H is out of the airstream. This makes it suitable for clean air, high-temperature process exhaust or high-temperature emergency smoke removal. The TAUB-L/H has rolled damper blades, gasket covered edges, fully welded and coated housing with steel blades. Its maximum continuous operating temperature is 500 °F.

Model EACA-601 is an extruded aluminum combination louver-damper with drainable style blades, airfoil style damper blades and concealed damper linkage within the louver jambs. When in the open position this louver functions as a conventional louver while providing tight shut off from air and other elements when in the closed position. This product is most often provided with factory-mounted and adjusted electric actuators.
